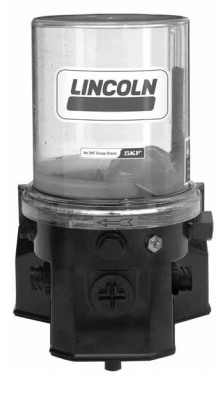

94823LDL | Electric Grease Pump P203 Series RemoteLinc
$2,062.36
- Easily interfaces with OEM and aftermarket telematic systems
- Allows users to:
- Remotely monitor and detect low lubricant levels and system faults.
- Reduce cost by receiving immediate, real-time alerts when lubricant is low or the system is in fault.
Electrical Requirements
| Input: |
12 VDC @ 3.5 amps, 24 VDC @ 2 amps |
| Enclosure Rating: |
IP6K9K * |
| Interval Between Lube Cycles: |
Min. 4 minutes / Max. 15 hours |
| Pump Output: |
0.171 cu. in./min. |
| Outlet Connection: |
1/8" NPT (F) |
| Reservoir Capacity: |
2-, 4-, 8- or 15-liter** |
| Maximum Recommended Operating Pressure: |
5000 psi |
| Lubricant: |
Greases NLGI grade 2 (depending on operating temperature and type of lubricant) |
| Temperature Range: |
-13F to +158F / -25C to +70C |
| Pressure Relief Valve: |
4000 psi, +/- 250 psi |
Model Specifications
| Voltage | Reservoir Capacity |
| 24 VDC | 8 Liters |
Proximity switch is not included and must be ordered separately.
