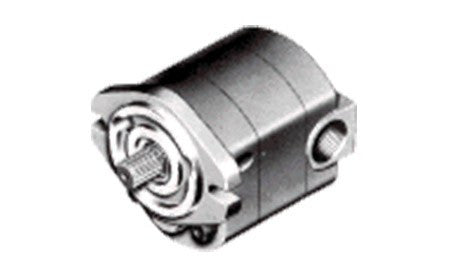

360038 | Hydraulic Gear Pump 40 Series 40P007 RACSA
$1,092.29
- Rated working pressure: 3000 psi
- Max. shock & surge pressure: 3500 psi
- Max. flow rate (delivery): 17.5 GPM
- Max speed (continuous): 3600 RPM
- Max. horse power: 41 HP
- Mounting: SAE "A" size 2-bolt
- 20 psi pump seal
|
Displacement |
1000 (RPM) - Theoretical Flow Rate (GPM) |
1500 (RPM) - Theoretical Flow Rate (GPM) |
2000 (RPM) - |
2500 (RPM) - Theoretical Flow Rate (GPM) |
3000 (RPM) - Theoretical Flow Rate (GPM |
| 0.75 | 2.8 | 4.1 | 5.5 | 6.9 | 8.3 |
* Indicated that single rotation pump with large inlet is required.
|
Special Options |
Rotation | Shaft Size & Type |
Port Location |
Port Inlet Size | Port Outlet Size |
| None | Right | 5/8" Dia. Keyed | Side | 1 5/16" | 1 1/16" |
NOTE: Product images are for representation only.
