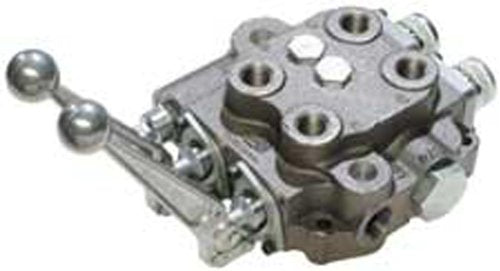

The Cross SBA series hydraulic control valveåÊis a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports. åÊFully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

• 2500 psiåÊoperating pressure for SBA
• 30 GPM flow rate
• SBA: 3/4‰۝ NPTF in and out, 1/2‰۝ NPTF work ports
• Adjustable built-in relief set at 2000 psi
• Open center
• Built-in load checks for lifting
• Double spool, 3-position, 4-way

Field conversion kits:

• 1V0208 Power Beyond Sleeve (3/4‰۝ NPTF)
• 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
• 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
• 1V1626 Heavy Duty Handle Assembly
• 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.

åÊ

NOTE: åÊProduct images are for representation only.
