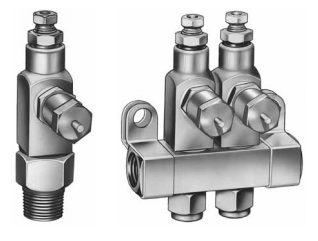

83338 | Centro-Matic SL-32 Series Grease Injector Assembly
$63.23
- For single-line, high-pressure central lubrication system.
- For dispensing lubricants compatible with flouroelastomer packings and viscosity up to NLGI No. 2 (refer to Design Guide).
- Output is externally adjustable.
- Indicator stem permits visual check of injector operation.
- May be combined in a circuit of injectors SL-33, SL-V, SL-V XL and/or SL-11.
- Individual injectors can be easily removed for inspection or replacement.
- Available in stainless steel SAE 304, for application where environmental conditions are hazardous to carbon steel or in industries preferring stainless steel.
| Output Min./Max. | 0.001 cu. in. / 0.008 cu. in. |
| Operating Pressure Min./Max. | 1200 psig / 3500 psig |
| Operating Pressure - Typical | 1500 psig |
| Operating Pressure - Vent | 200 psig |
| Manifold Inlet Connection | 1/4" NPTF (F) |
| Injector Outlet Connection | 1/8" O.D. Tube |
| Material | Number of Outlets | A Dimension | B Dimension |
| Carbon Steel | 1 | Single Injector / No Manifold |
Single Injector / No Manifold |
Notes:
1. Injectors, except replacement injectors for manifold, include compression nut and ferrule for tubing — 1/8" O.D. as standard. Other outlet connectors for feed line optional.
2. Injectors with manifolds include two mounting clips and screws.
3. Injectors have Nitrile packings (200°F max. / 93°C). Check packing compatibility with synthetic lubricants.
4. Output with indicator cap hand-tightened is .001 cu. in. Maximum output is achieved with five turns at .0014 cu. in./turn.
Note: Product images are for representation only.
