644-46174-4 | Electric Grease Pump P203 AC Series
$1,805.55
Automatically adjusts to handle a variety of electrical supply voltages (between 94- and 265-volt, 50 to 60 Hz).
| Input Voltage: | 94 0 265 VAC, 3 Amps |
| Operating Temperature: | -13 F to 158 F / -25 C to 70 C |
| Number & Element Size: | 1 - 6 mm |
| Reservoir Capacity: | 2-, 4-, 8- or 15- liter* |
| Output per Minute: | Approx. 2.8 cc |
| Lubricant: | Greases up to NGLI #2 / Oil with at least 40 cSt |
| Max. Operating Pressure: | 5076 psi |
* Contact us for 15-liter reservoir models
Model Specifications
| Description: | P203-8XLBO-1K6-AC-2A1.01 (UL)-A+SV |
| Res. Cap.: | 8 liter |
| Grease or Oil: | Grease |
| Low Level Control: | Yes |
| Printed Circuit Board: | No |
"(UL)" in the description refers to UL-approved, CSA-certified pumps.
Pumps with "-A+SV" come complete with the 1/8" NPT adapter and pressure relief valve.

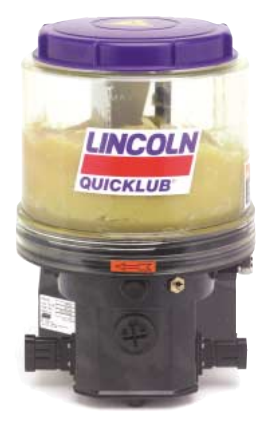

Product image is for representation only.
