Cross is the recognized brand in the agricultural sector and supplies hydraulic components for many markets, including mobile, material handling, logging, utility, construction, mining, and forestry.

The Cross Converta can be easily converted to a 3-way valve by using the conversion and port pipe plug supplied with the valve. It can also be converted to a 3-position manual detent valve by ordering a separate detent kit: part #1V0294.

This valve may be used to operate a double or single acting cylinder, or a reversible or single direction motor when a hold position in neutral is required.

Features:

  • 3 position, 4 way - convertible to 3 positions, 3 way
  • Open center (only), spring centered to neutral
  • 2000 psi maximum operating pressure
  • 25 GPM flow rate
  • 3/4” NPTF inlet and outlet ports
  • 1/2” NPTF work ports
  • Built-in relief valve (preset at 2000 psi)

Notes:

  • Not intended for use in metered lifting circuits.
  • Not convertible to pressure kick out.
  • Never use a manual detent in a logsplitter application.

NOTE:  Product images are for representation only.

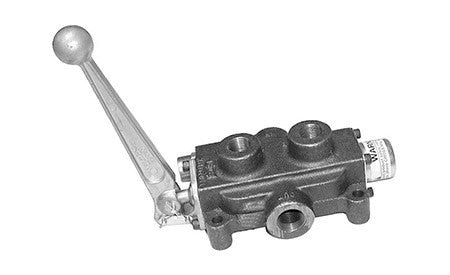

108360  |  Directional Valve C Series SCD2E

The Cross SRD series differential type adjustable relief valves provide long life and smooth performance at an economical price. This valve is used to protect pumps from damage due to over-pressurization.

Features:

  • 500 to 3000 psi adjustment range
  • 30 GPM flow rating
  • Hydraulically dampened differential poppet-style relief valve.
  • 500 to 1500 psi range, set at 1000 psi
  • 3/4" NPTF

NOTE:  Product images are for representation only.

The Cross SRD series differential type adjustable relief valves provide long life and smooth performance at an economical price. This valve is used to protect pumps from damage due to over-pressurization.

Features:

  • 500 to 3000 psi adjustment range
  • 30 GPM flow rating
  • Hydraulically dampened differential poppet-style relief valve.
  • 1500 to 3000 psi range, set at 2000 psi
  • 3/4" NPTF

NOTE:  Product images are for representation only.

The Cross SRD series differential type adjustable relief valves provide long life and smooth performance at an economical price. This valve is used to protect pumps from damage due to over-pressurization.

Features:

  • 500 to 3000 psi adjustment range
  • 30 GPM flow rating
  • Hydraulically dampened differential poppet-style relief valve.
  • 1500 to 3000 psi range, set at 2000 psi

NOTE:  Product images are for representation only.

The Cross SRC series dual differential type relief valves are used to protect equal size cylinders or motors from external or shock loads. Oil which passes from one relief valve flows directly to the opposite side of the circuit, thus preventing cavitation. The swing circuit on a backhoe is a good application example.

Features:

  • 500 to 3000 psi adjustment range
  • 30 GPM flow rating
  • 1500 to 3000 psi range, set at 2000 psi
  • 3/4" NPTF

NOTE:  Product images are for representation only.

The Cross SVS series selector valves are 2-position, 3 port units designed for maximum performance at an economical price. These valves can be used for uni-directional cylinder and motor control or for selecting one of two circuits from a single pump. Solenoid operators are available.

Features:

  • 3000 psi operating pressure
  • Knob actuator
  • Hard chrome plated spool

Optional Field Kits

Description Part Number

Clevis Adapter

1V0930
Handle Assembly Kit 1V0931
Knob 1A0768
Spring Return Assembly 1V0932
Two-Position Detent 1V0934





NOTE:  Product images are for representation only.



The Cross SVS series selector valves are 2-position, 3 port units designed for maximum performance at an economical price. These valves can be used for uni-directional cylinder and motor control or for selecting one of two circuits from a single pump. Solenoid operators are available.

Features:

  • 2500 psi operating pressure
  • Knob actuator
  • Hard chrome plated spool
 Rated GPM Port Size
40 3/4" NPTF



Optional Field Kits

Description Part Number
Clevis Adapter 1V0930
Handle Assembly Kit 1V0931
Knob 1A0768
Spring Return Assembly 1V0932
Two-Position Detent 1V0934



NOTE:  Product images are for representation only.

The Cross SVS series selector valves are 2-position, 3 port units designed for maximum performance at an economical price. These valves can be used for uni-directional cylinder and motor control or for selecting one of two circuits from a single pump. Solenoid operators are available.

Features:

  • 2500 psi operating pressure
  • Knob actuator
  • Hard chrome plated spool
 Rated GPM Port Size
20 1/2" NPTF



 Optional Field Kits

Description Part Number
Clevis Adapter 1V0930
Handle Assembly Kit 1V0931
Knob 1A0768
Spring Return Assembly 1V0932
Two-Position Detent 1V0934



NOTE:  Product images are for representation only.

The Cross SVS series selector valves are 2-position, 3 port units designed for maximum performance at an economical price. These valves can be used for uni-directional cylinder and motor control or for selecting one of two circuits from a single pump. Solenoid operators are available.

Features:

  • 3000 psi operating pressure
  • Knob actuator
  • Hard chrome plated spool



NOTE:  Product images are for representation only.

128513  |  Sequence Valve SQV Series

128513 | Sequence Valve SQV Series

by Cross Mfg.
$105.28

The Cross SQV series valve is a 2-position, 3 port valve designed to alternately operate a pair of agricultural guide marker cylinders. May be used with single acting or double acting marker cylinders.

Features:

  • 2500 psi operating pressure
  • (3000 psi maximum surge)
  • 3/4-16 (SAE#8) ports
  • 2 position, 3 ported
  • Rugged construction
 Rated GPM Port Size (SAE)
2 3/4-16 SAE



 NOTE:  Product images are for representation only.

129027  |  Selector Valve SD Series SD4

A minimum of 100 psi pilot pressure is required for shifting the spool. With heavy duty end caps up to 3000 psi pilot pressure may be used. In some applications, pilot pressure can be supplied with a shuttle valve connected between ports "C" and "D" of the SD4 double selector.

Features:

  • SSD4: 2500 psi operating pressure, 1” NPTF ports
  • Complete handle assembly

Optional Field Conversion Kits

Description Part Number
Clevis Adapter 1V0930
Handle Adapter 1V0931
Knob 1A0768
Spring Return Assembly 1V0932
Two-Position Detent 1V0934



 NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Single spool, 3-position, 4-way


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

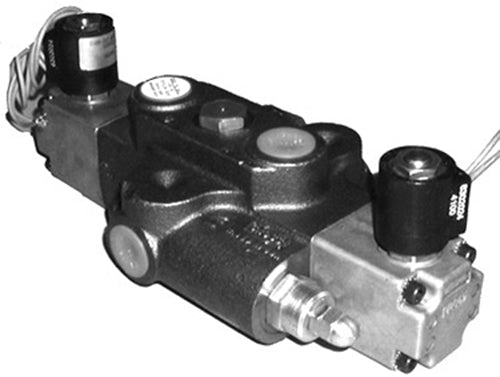

Features:

  • 3000 psi operating pressure
  • 30 GPM flow rate
  • SAE ports, 1 1/16-12 in & out, 3/4-16 work
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Single spool, 3-position, 4-way, 12 volt


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Closed center
  • Built-in load checks for lifting
  • Single spool, 3-position, 4-way


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Double spool, 3-position, 4-way


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

Features:

  • 3000 psi operating pressure
  • 30 GPM flow rate
  • SAE ports, 1 1/16-12 in & out, 3/4-16 work
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Double spool, 3-position, 4-way, 12 volt


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Closed center
  • Built-in load checks for lifting
  • Double spool, 3-position, 4-way


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

Features:

  • 3000 psi operating pressure
  • 30 GPM flow rate
  • SAE ports, 1 1/16-12 in & out, 3/4-16 work
  • Adjustable built-in relief set at 2000 psi
  • Spring centered, closed center
  • Built-in load checks for lifting
  • Double spool, 3-position, 4-way


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Double spool, 1st spool 4-position float, 2nd spool 3-position


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* Float position allows a loader, snow plow or dozer blade to ride the contours of the ground as the machine moves forward.



NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Closed center
  • Built-in load checks for lifting
  • Double spool, 1st spool 4-position float, 2nd spool 3-position


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* Float position allows a loader, snow plow or dozer blade to ride the contours of the ground as the machine moves forward.



NOTE:  Product images are for representation only.

The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports.  Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.

Features:

  • 2500 psi operating pressure for SBA
  • 30 GPM flow rate
  • SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
  • Adjustable built-in relief set at 2000 psi
  • Open center
  • Built-in load checks for lifting
  • Triple spool, 3-position, 4-way


Field conversion kits:

  • 1V0208 Power Beyond Sleeve (3/4” NPTF)
  • 1V0249 Power Beyond Sleeve (1 1/16-12 SAE)
  • 1V2015 Closed Center Kit (contains 1V0206 & 1R0035)
  • 1V1626 Heavy Duty Handle Assembly
  • 1V1485-02 Single Handle Actuator for 2 & 3 spool models

* For operating double-acting hydraulic cylinders or a reversible hydraulic motor.



NOTE:  Product images are for representation only.
